Edelbrock

Förgasare

Marine Series 600 cfm Square-Flange Electric Choke Carburetor (non-EGR)

Artikelnummer: EDL1409
Inkl. moms8 084,00 kr
Exkl. moms6 467,20 kr
I lager

Mer information

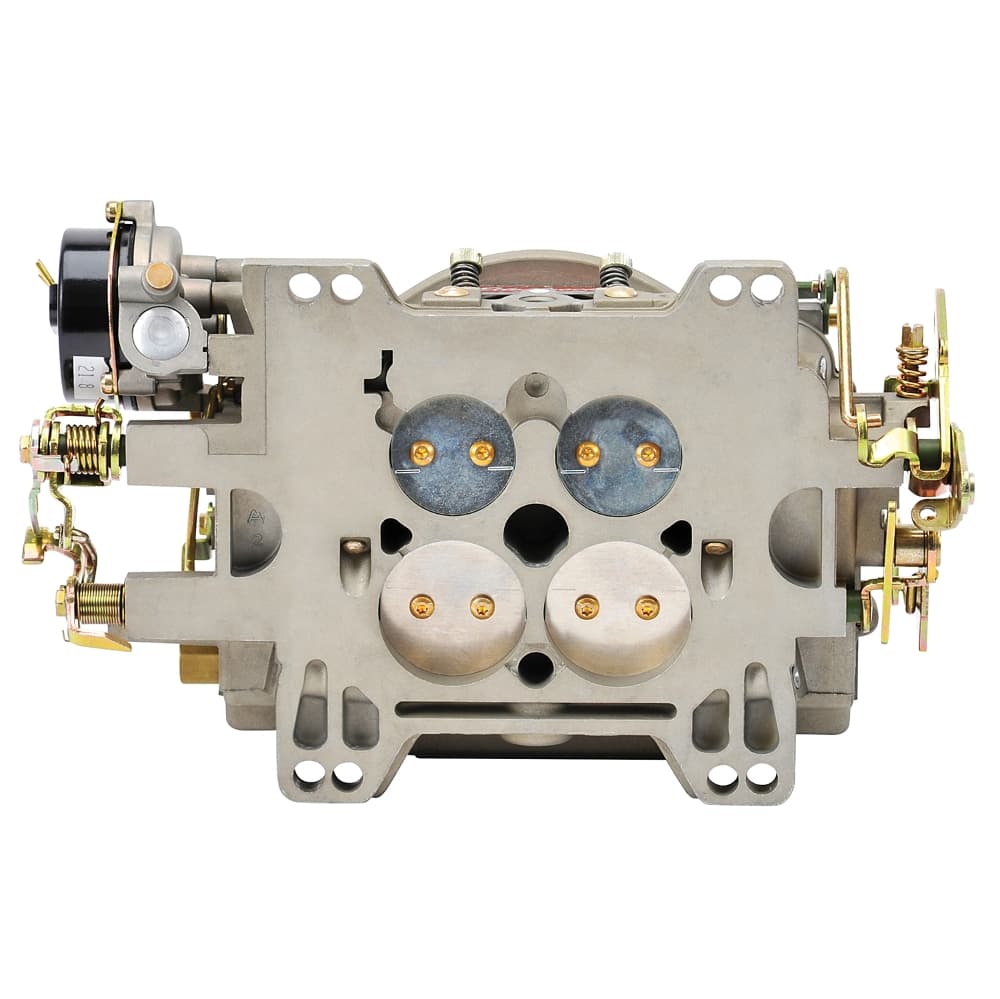

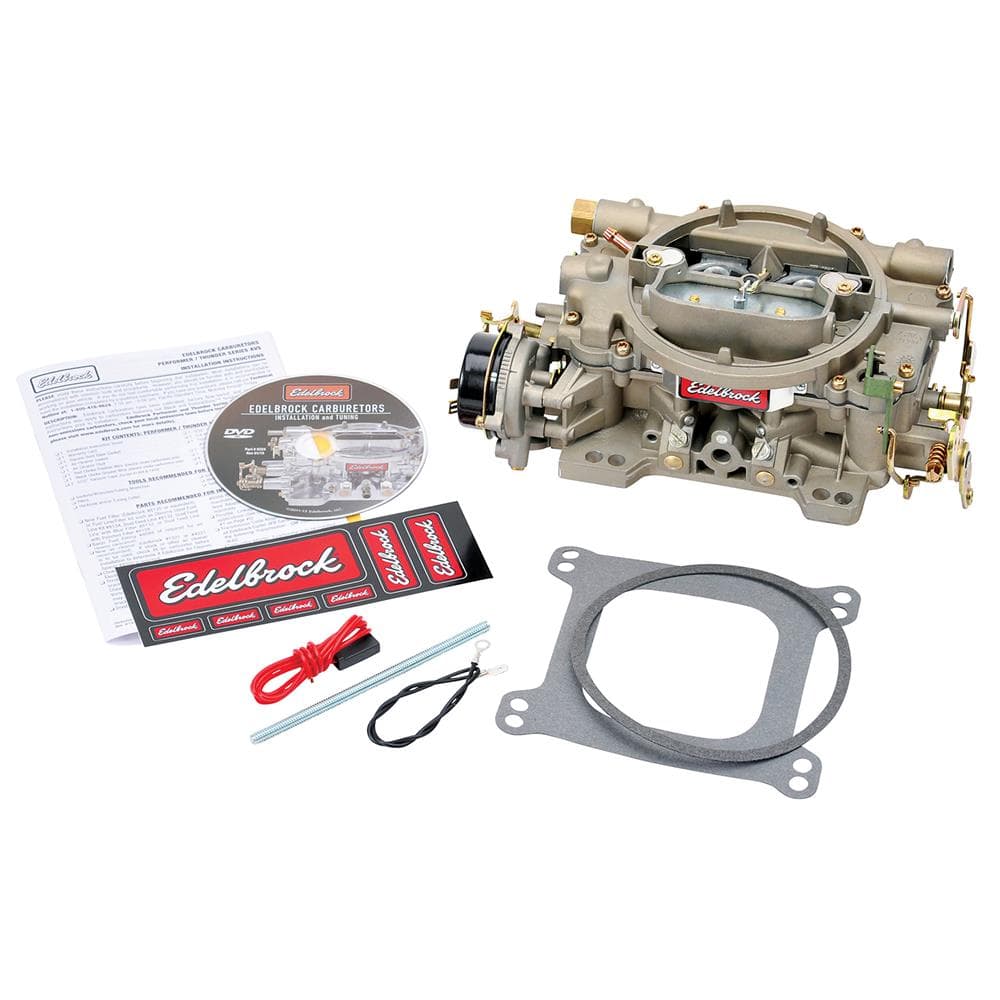

Edelbrock Marine Series 600 cfm Square-Flange Electric Choke Carburetor (non-EGR)

The Edelbrock 1409 Marine Series 600 CFM electric choke carburetor is a precisely tuned quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1409 Marine Series 600 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires which means that there are no power valves to blow out and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly the carburetor has the unique ability to "hold a tune" so once it is tuned the carburetor stay's tuned. What this means to you is that compared to other carburetors the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable user-friendly and is easily tunable for trouble-free operation.

Finish:Zinc-Dichromate
Series:Marine
Barrels:4
EGR Port:No
Material:Aluminum
Condition:New
Choke Type:Electric
Body Height:3.25"
Booster Type:annular
Flange Shape:Square
Spring Force:5" Hg (Orange)
Bore Diameter:Primary Bore 1.44"
Metering Rod Size:.068 x .047"
Maximum Flow Rating:600 2L
Primary Jet Diameter:0.098 Inch
Main Venturi Diameter:1.19"
Secondary Jet Diameter:0.101 Inch
Gasket Or Seal Included:Yes
