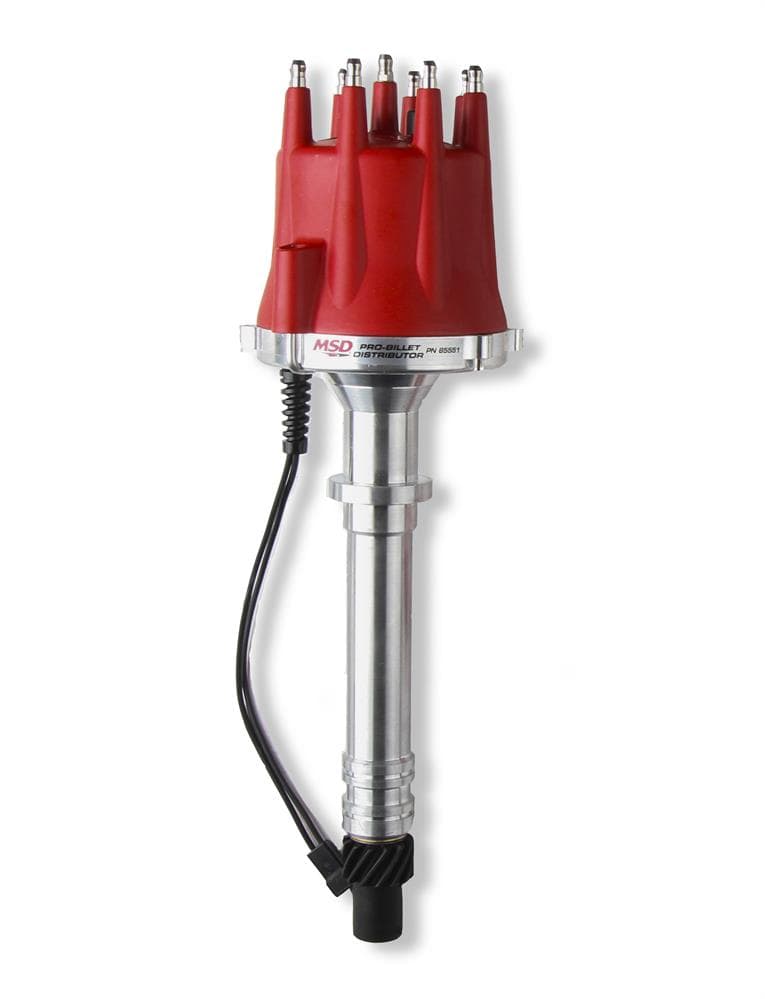

Chevy V8 Pro-Billet Distributor
Mer information
This is our most popular performance distributor. Must be used with an MSD 6, 7 or 8-series ignition.
Different springs and stop bushings are supplied so you can tune an advance curve to match your application.
Must be used with an MSD 6, 7 or 8-series ignition.
The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free. Just above the pick-up is MSD's adjustable mechanical advance assembly.Will not accept a vacuum advance canister
O-ring seals can be added to modified blocks to improve oil pressure control
Must be used with an MSD Ignition Control
Mechanical advance assembly can be locked out for crank trigger systems
Advance weight pins are staked and tig welded to the plate
Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
Special oil tract improves lubrication to the distributor and cam gear
Nylon pads ensure smooth operation of the advance weights
No CARB Exemption Order Number
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Easy-to-adjust mechanical advance with supplied springs and stop bushings
CNC machined billet aluminum housing and billet aluminum base

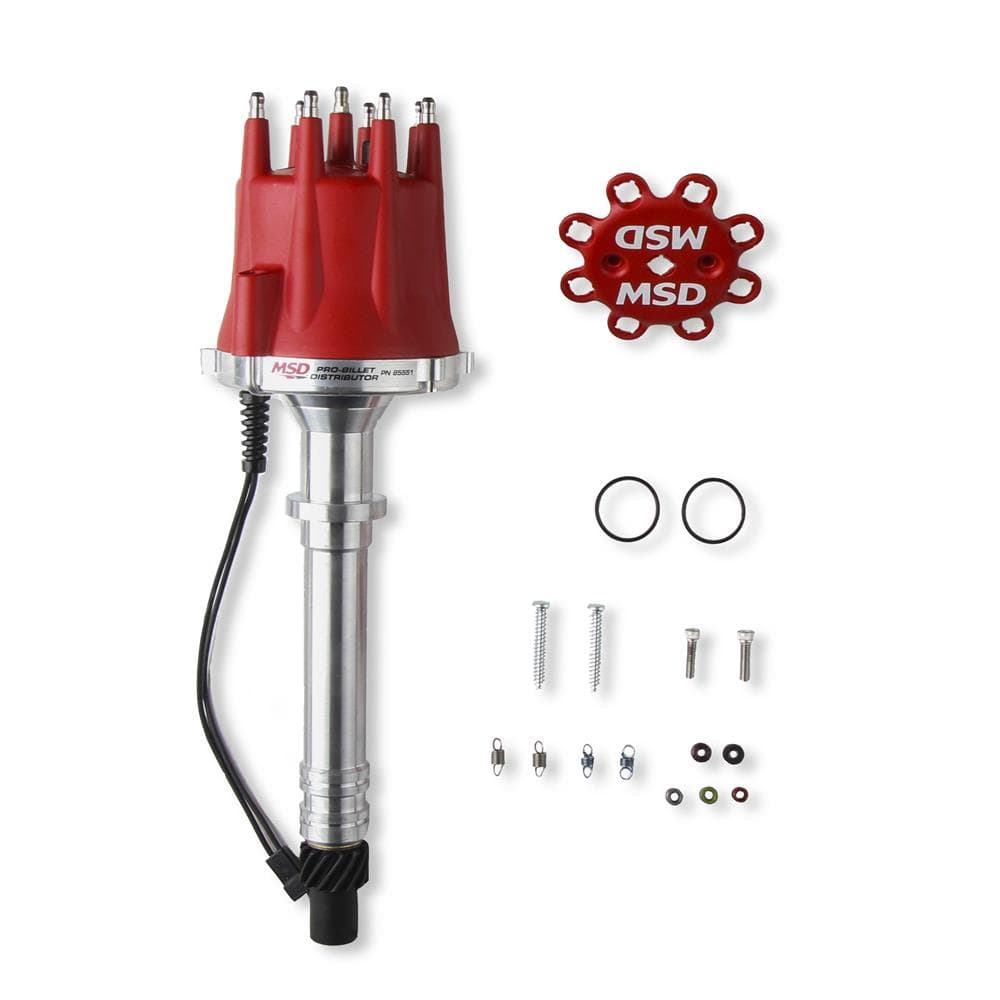

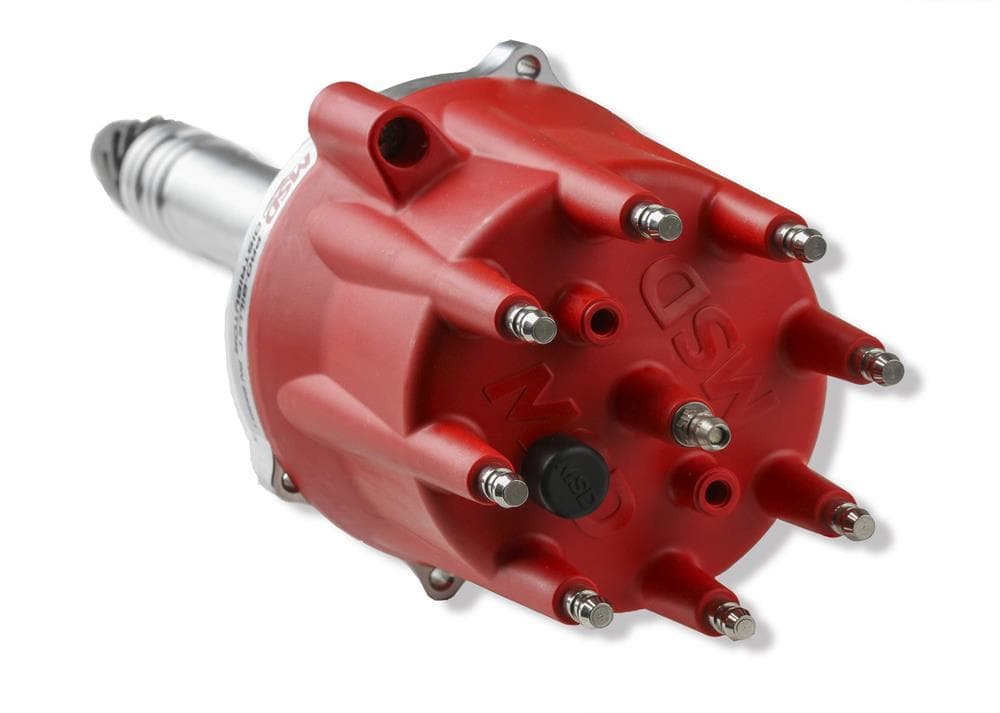

Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
