B&M

Flexplatta automat

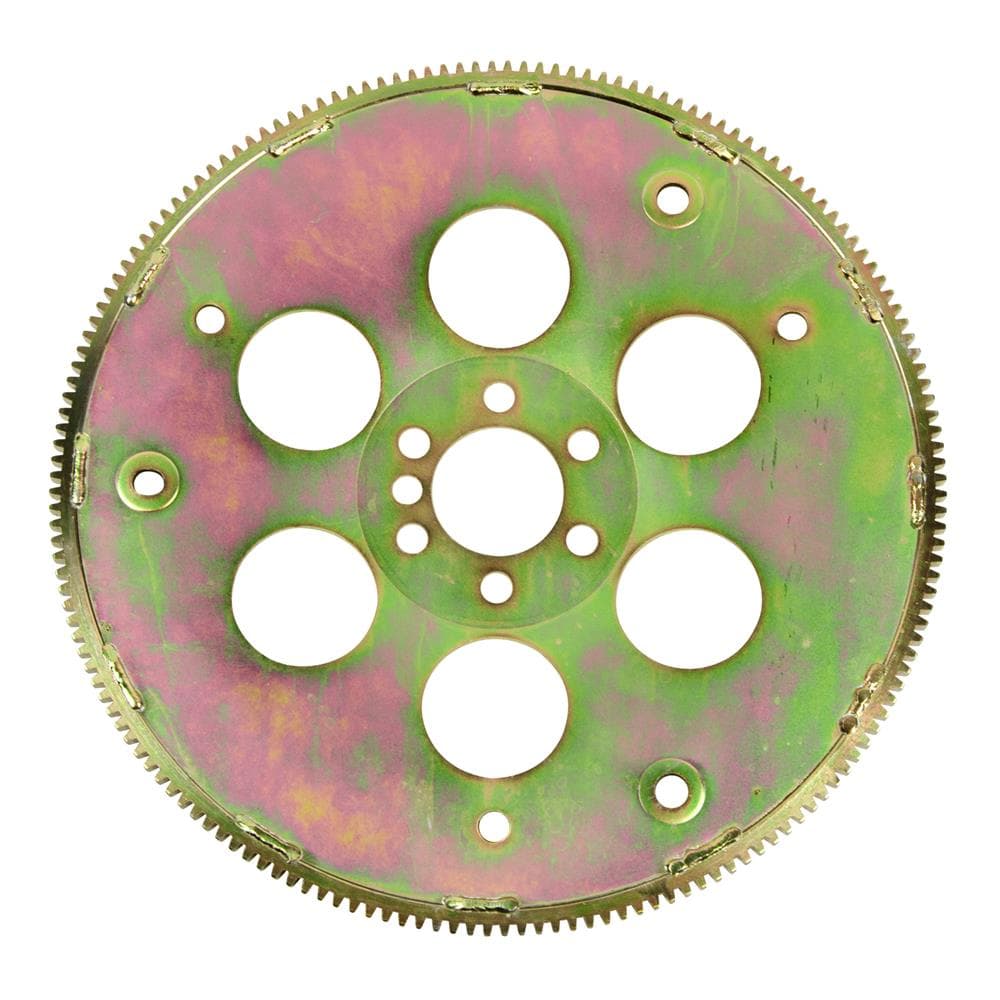

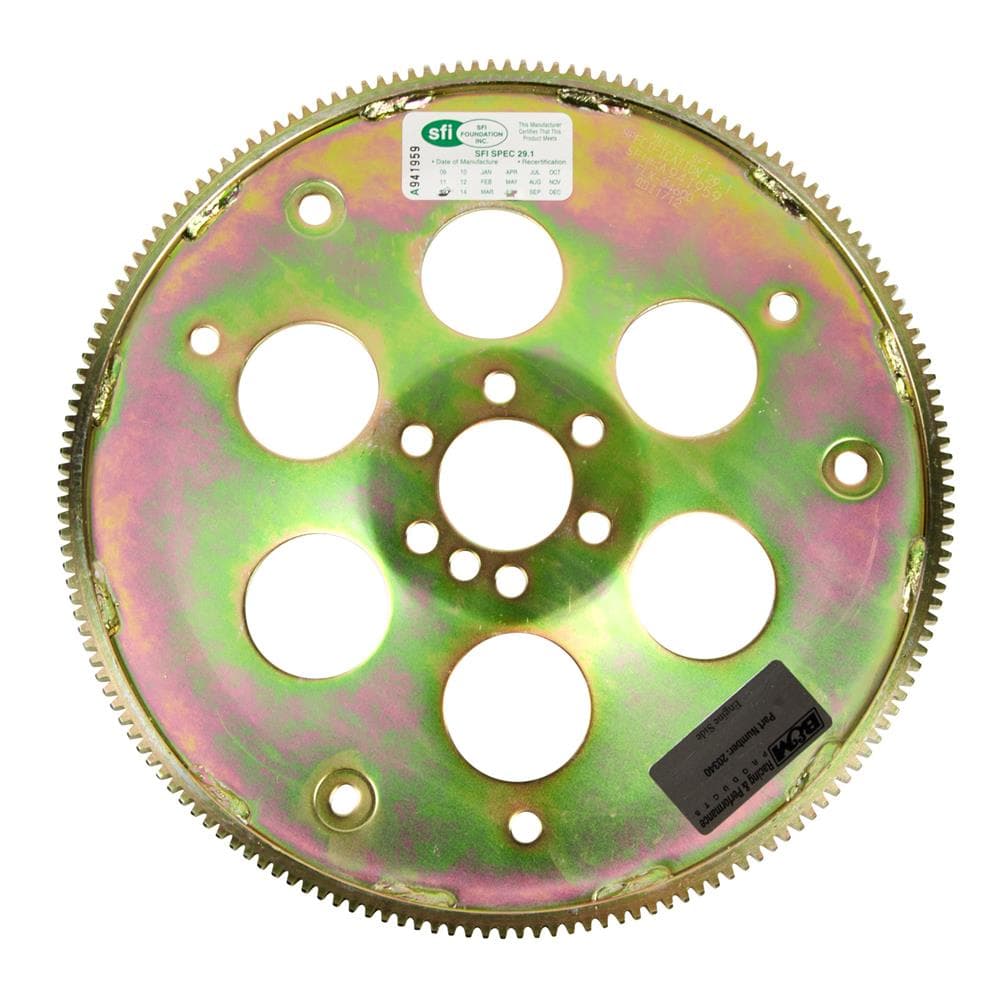

Steel SFI Certified Flexplate - GM LS Engines

Artikelnummer: BOM20340
Inkl. moms2 196,25 kr
Exkl. moms1 757,00 kr
Beställningsvara

Fits GM LSx motors. Including 2010 and newer automatic Camaro with L99 engine and 1st through 4th generation Chevrolet Camaro and Pontiac Firebird. Also fits all GM LSx motors using an automatic transmission including Corvette, GTO, and G8

10.75, 11.06 Inch Bolt Pattern Convertor Mount

Includes SFI 29.1 Certification Sticker

Zinc Plated Chromate Finish

168 Tooth Ring Gear

B&M Quality

As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high-performance flexplate designed for GM 1997-up 4.8L, 5.3L, 5.7L & 6.0L LS engines with 6-bolt crankshaft flange, including 2010-15 Camaro with the L99 engine. Features include high tensile strength steel construction to resist elongation and cracking, 10.75 and 11.06-inch converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification ensuring the ultimate in safety and performance. The assembly is finished with Zinc plating and Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI-approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles, or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Note: Will not fit 1999-00 6.0L applications with 0.400 inch extended crank flange/flat flexplate or 1999-00 4.8L engines that originally came with a manual transmission. A flexplate spacer is required for retrofitting Non-LS era transmissions to LS engines.

Engine:GM Gen III/IV (LS)
Balance:Internal
Material:Steel
Grade Type:Performance
IHRA Legal:Yes
NHRA Legal:Yes
Application:Chevrolet
Dual Pattern:Yes
SFI Approved:Yes
Tooth Quantity:168
Number of Teeth:168
SFI Certification:29.1
Outside Diameter (In):14.13
Converter Bolt Pattern:10.75", 11.06"
Mounting Hole Quantity:6
SFI Certification Sticker:Included
Crankshaft Bolt Hole Count:6
