Elektrisk bränslepump

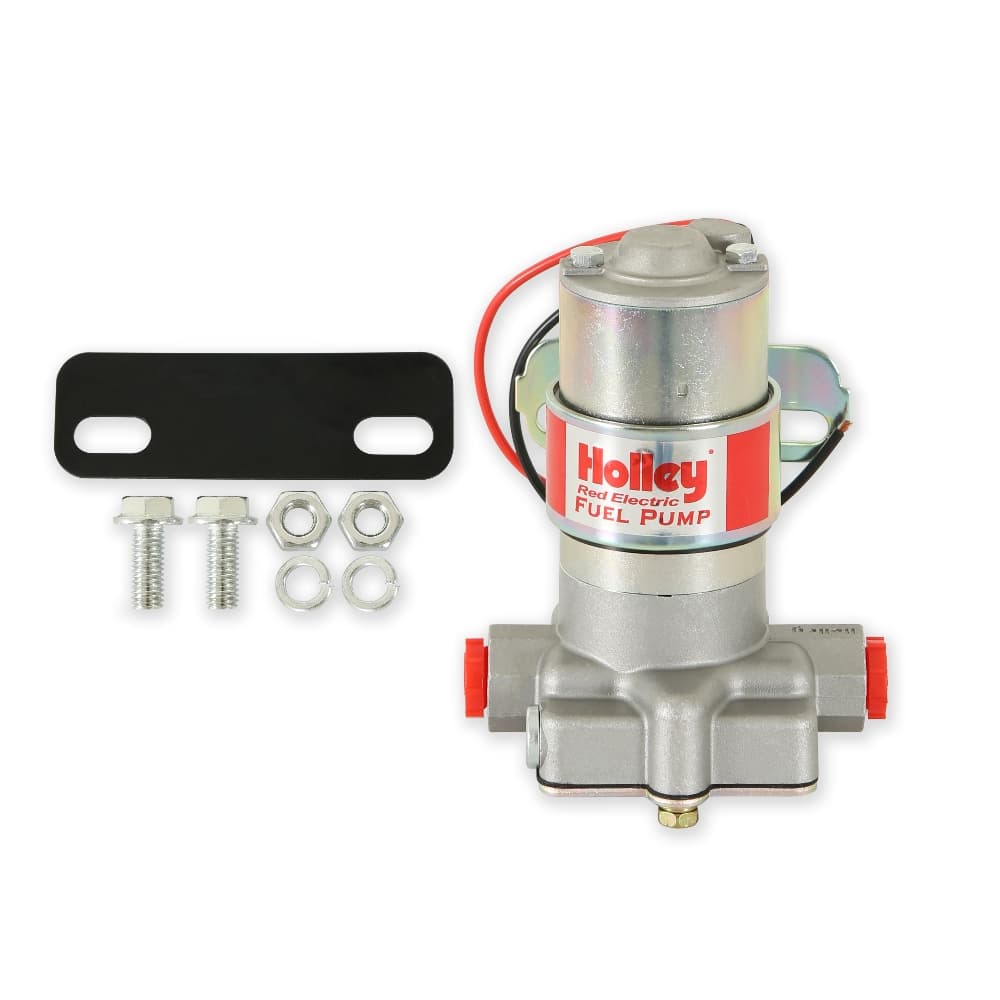

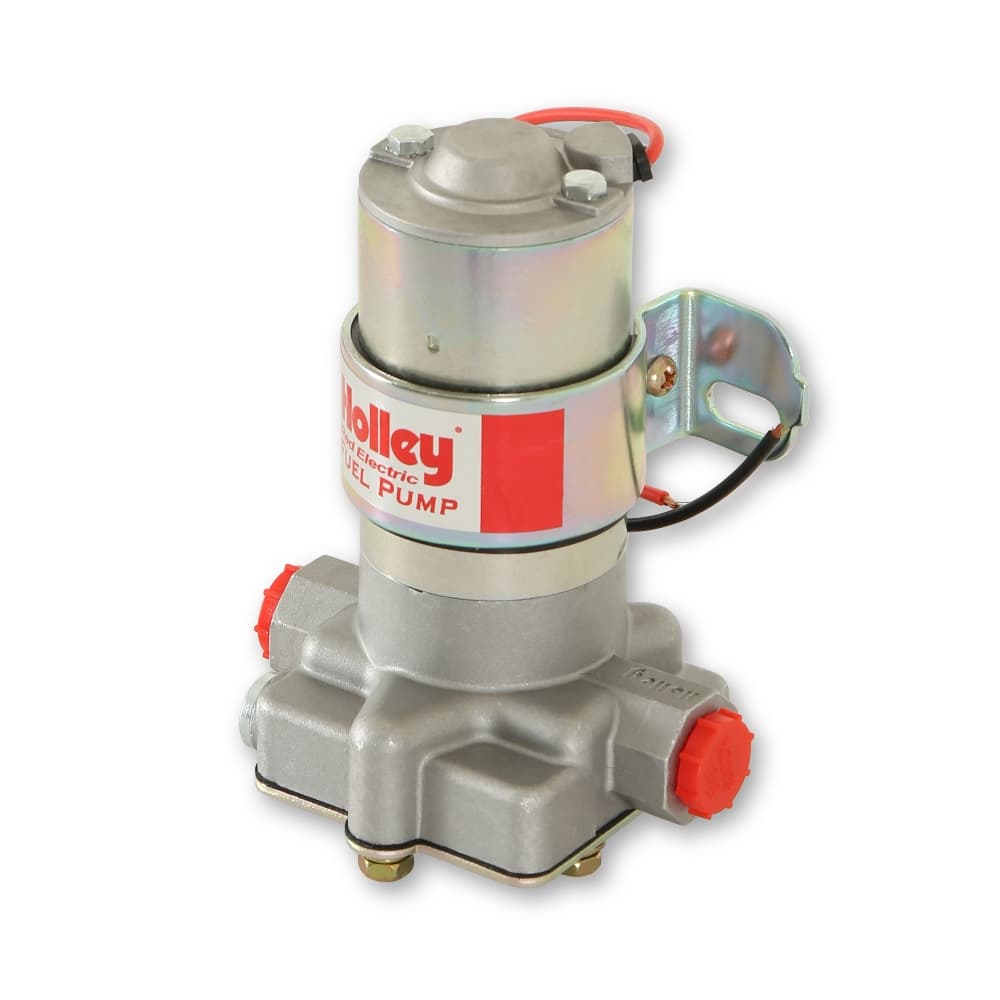

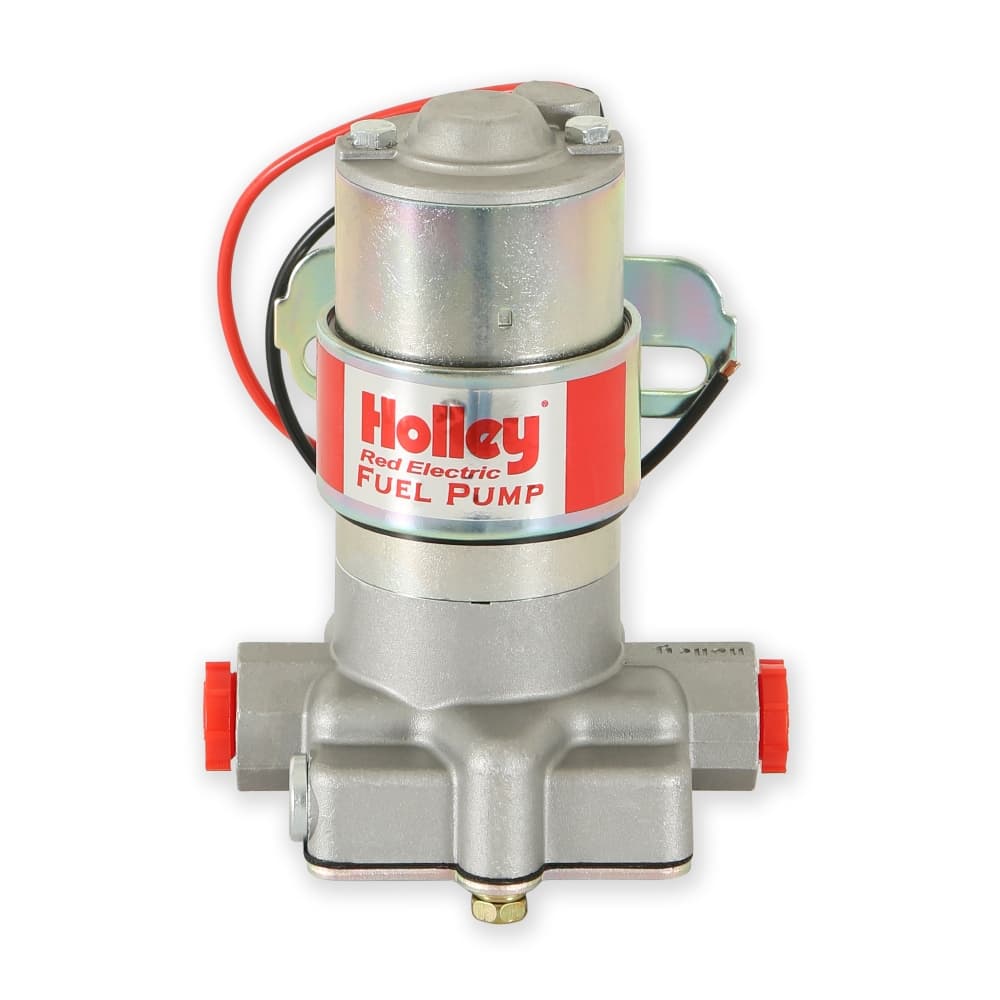

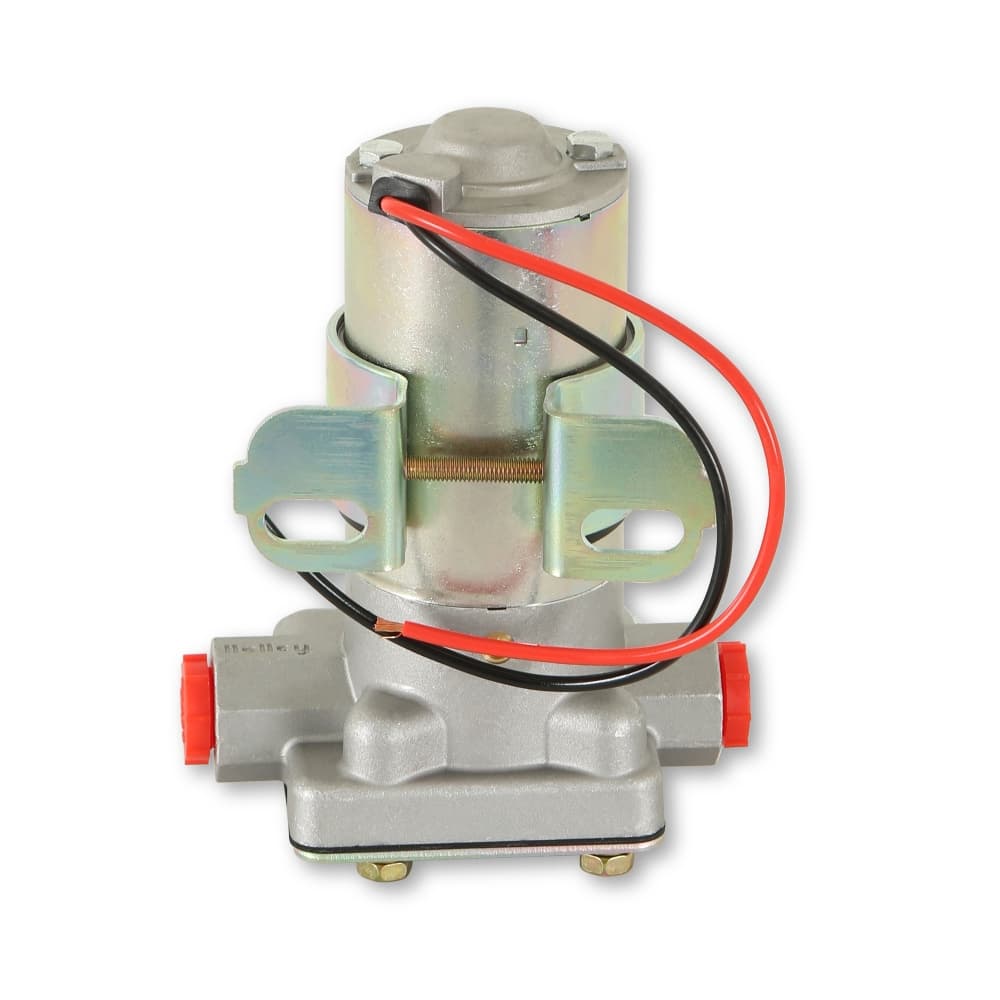

97 GPH RED® Electric Fuel Pump
Mer information
Street/Strip Carbureted Applications Compatible with Gasoline Only
Tumble polished billet look
Lower housing casting designed for enhanced fuel flow
Maximum pressure is 7 psi
Motor draws 2 amps current
Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
Constant fuel flow with no pulsation
Improved design for street/strip applications
Not designed to be used on aircraft of any type
Distinctive â??Redâ? logo

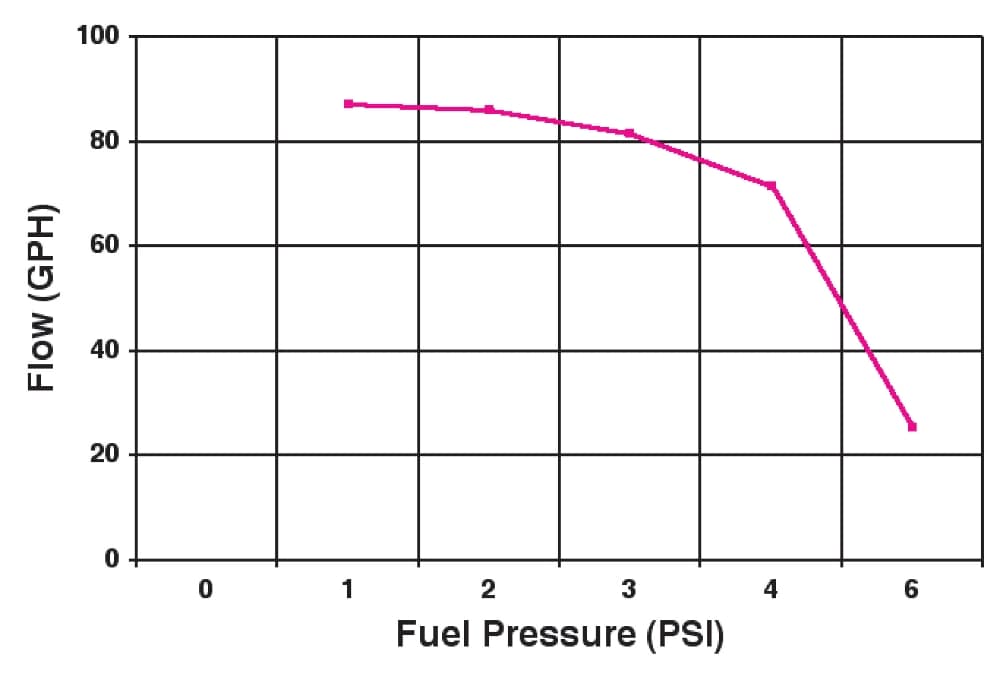

Flows 97 GPH (free flow)
Flows 71 GPH at 4 psi
Regulator is not required
Has externally accessible pressure relief valve (max 7 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 2.88 lbs
Not designed or recommended for use with fuel injection systems

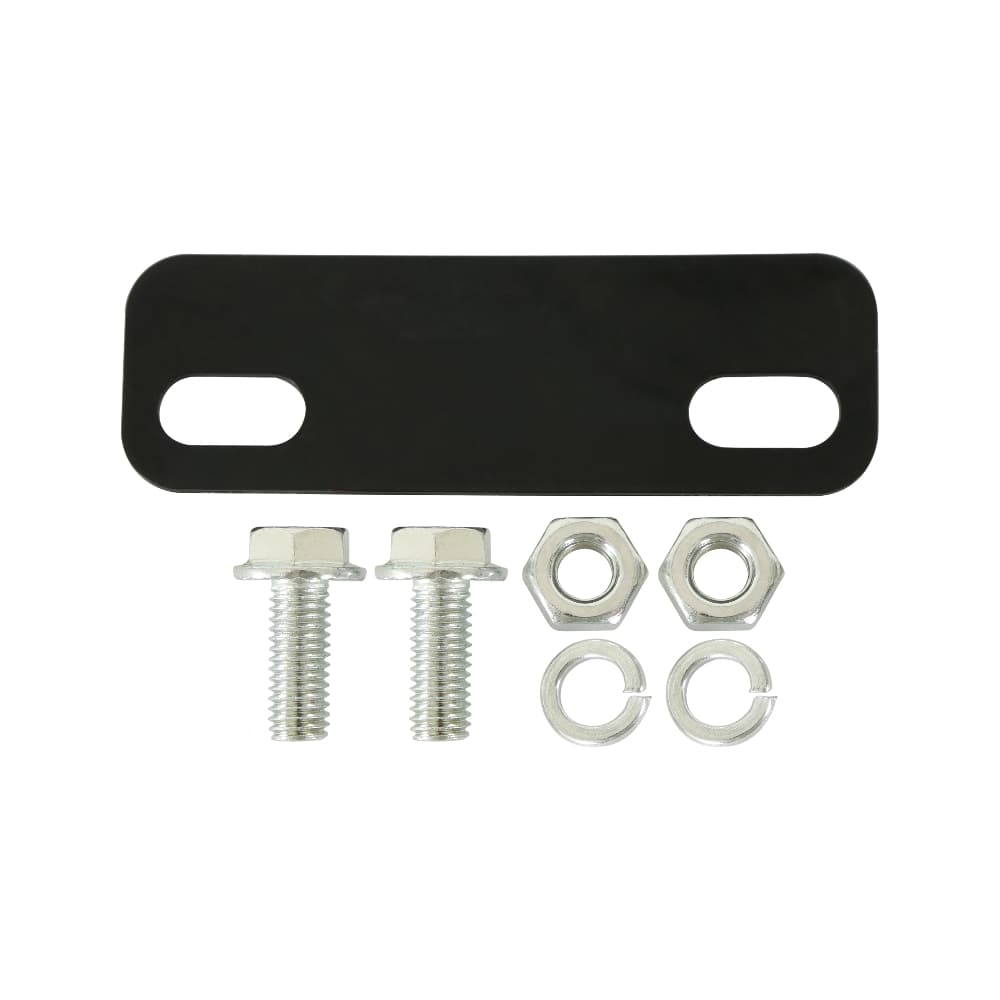

Includes Mounting Bracket
Repair kits are readily available
Can be serviced from the pump end
Not compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommendedThe world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.
