Elektrisk bränslepump

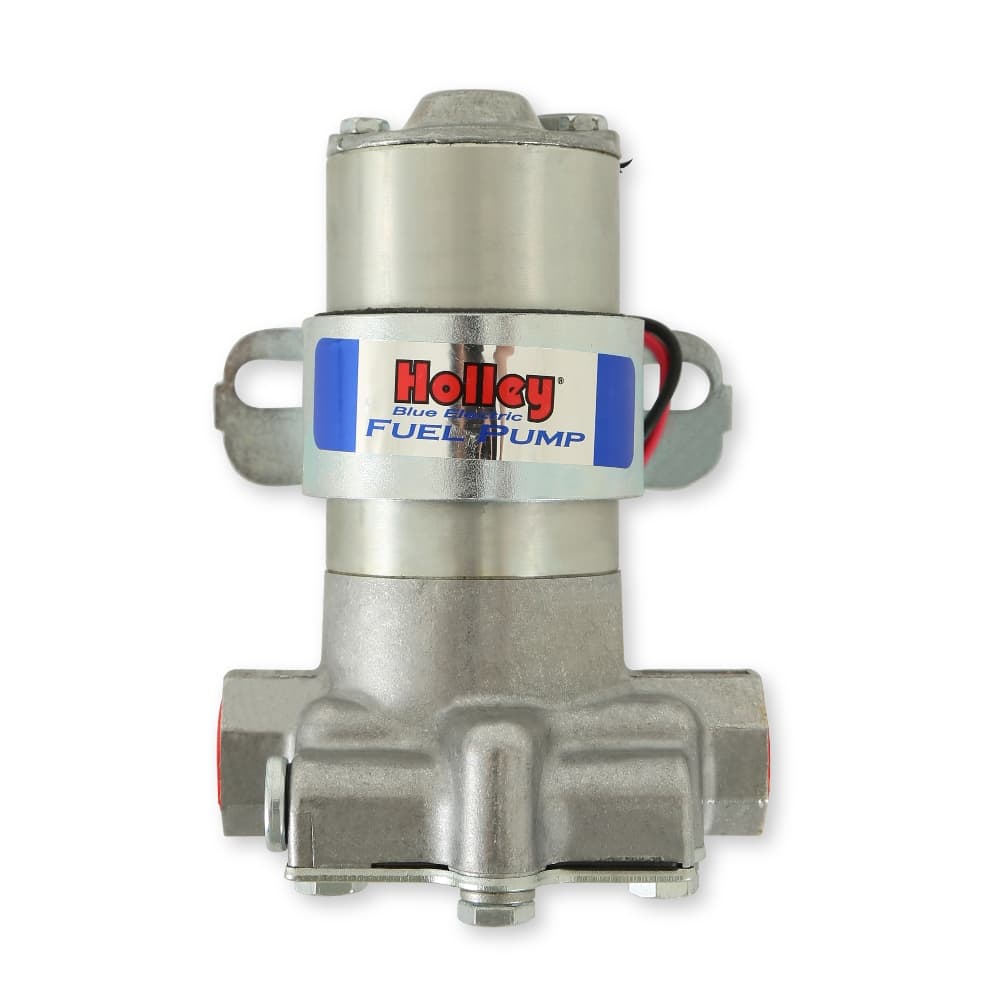

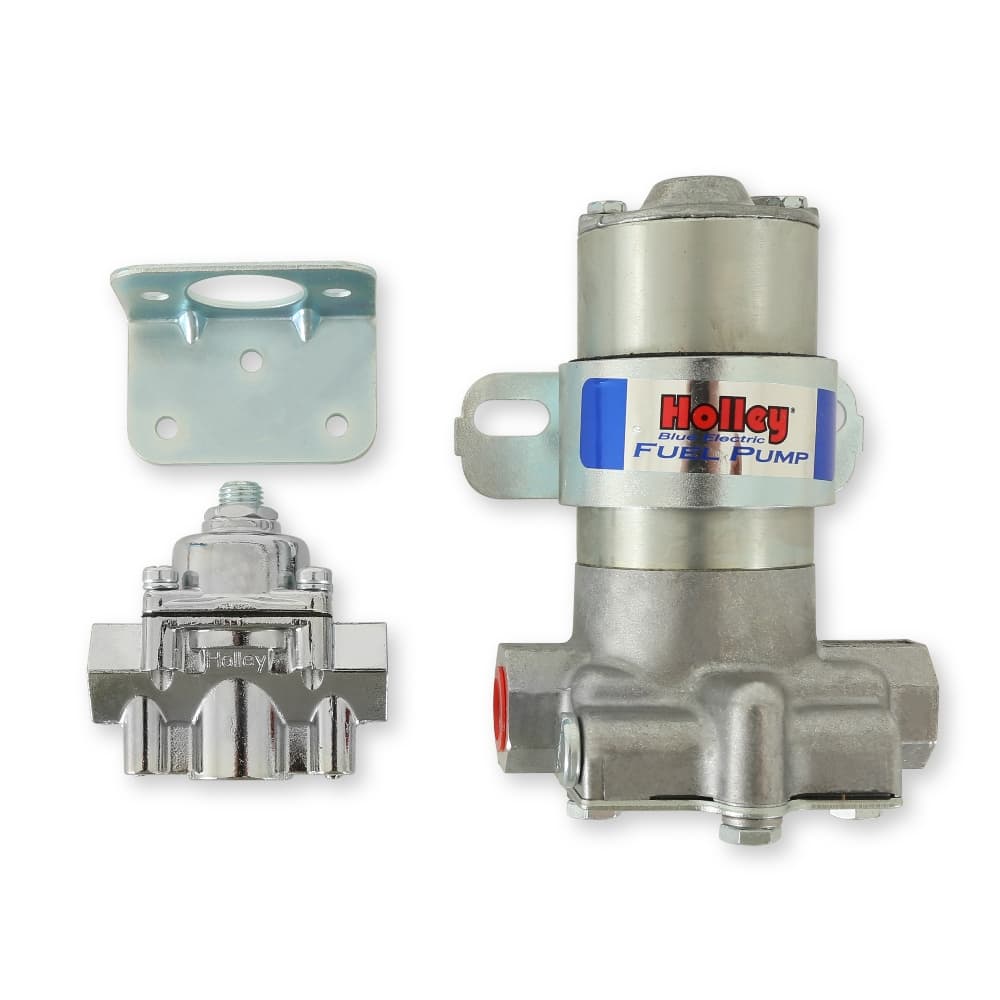

110 GPH Blue Electric Fuel Pump With Regulator
Street/Strip Carbureted Applications Gasoline Only
Tumble polished billet look
Lower housing casting designed for enhanced fuel flow
Motor draws only 3 amps current
Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
Improved design for street/strip applications
Not designed for use on aircraft of any type
Distinctive â??Blueâ? logo

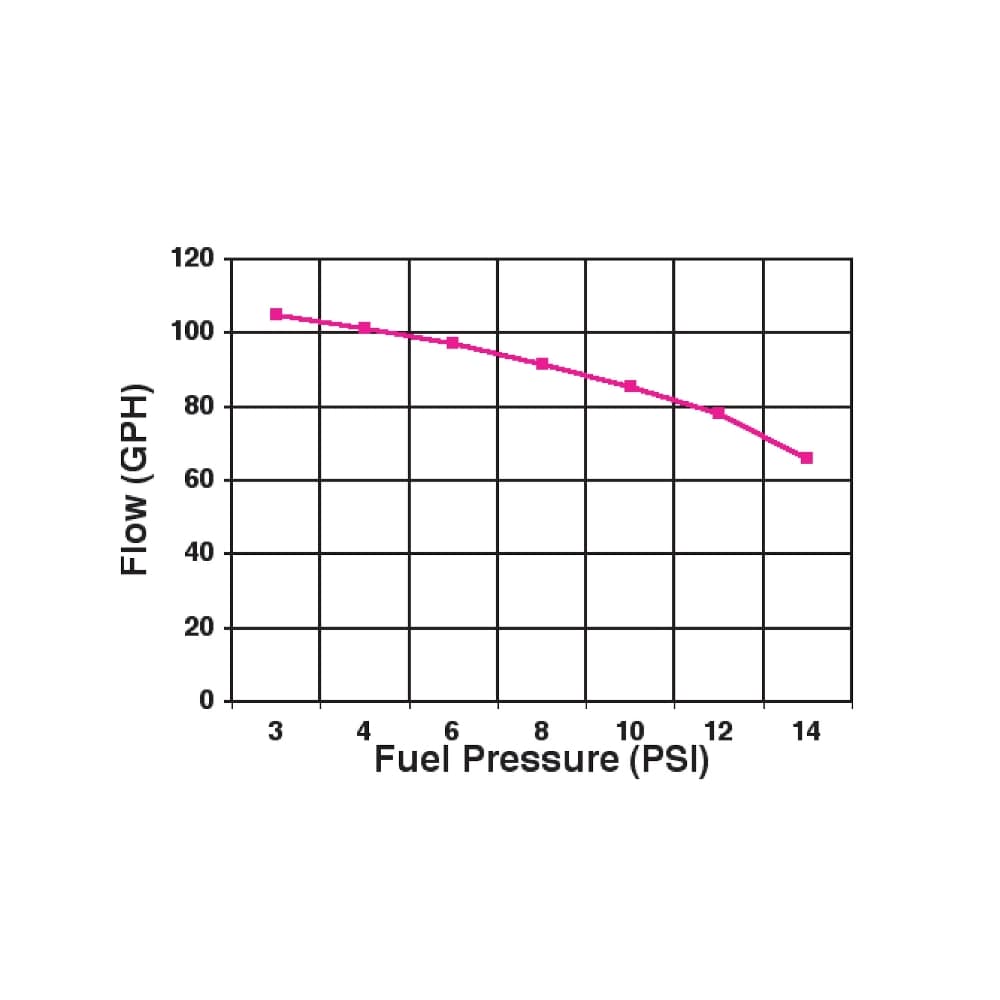

Flows 110 GPH (free flow)
Flows 88 GPH at 9 psi
Maximum pressure is 14 psi

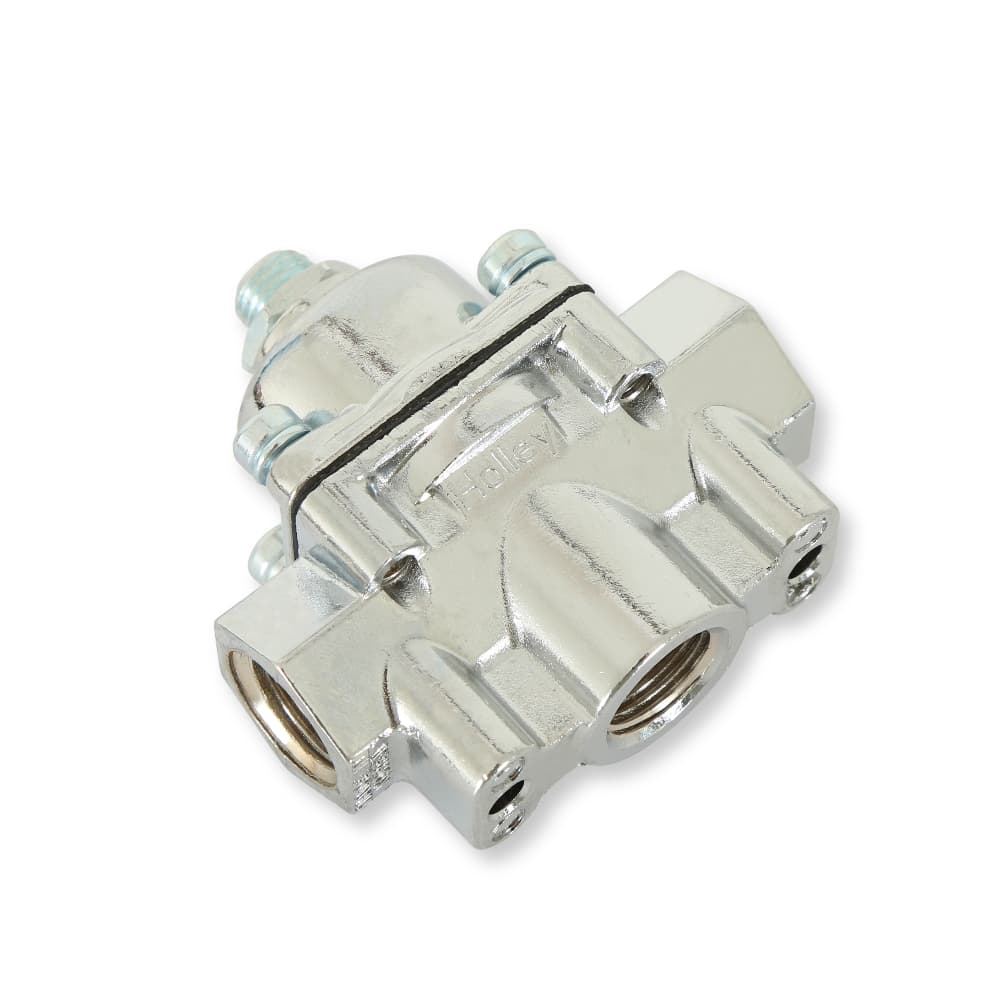

Includes P/N 12-803 fuel pressure regulator
Provides constant fuel flow with no pulsation
Has externally accessible pressure relief valve (max 14 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 3 lbs

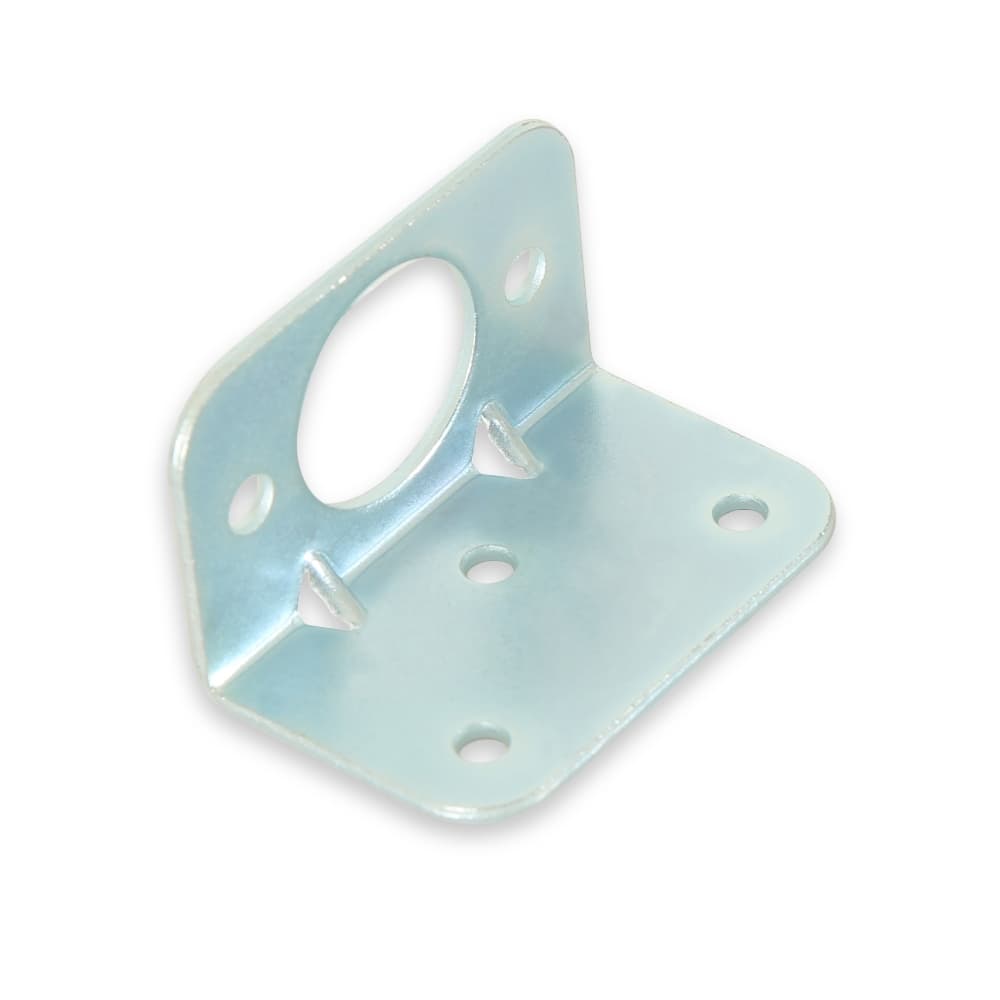

Includes Mounting Bracket
Repair kits are readily available
Can be serviced from the pump end
Not compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended
Not designed or recommended for use with fuel injection systemsThe world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.
