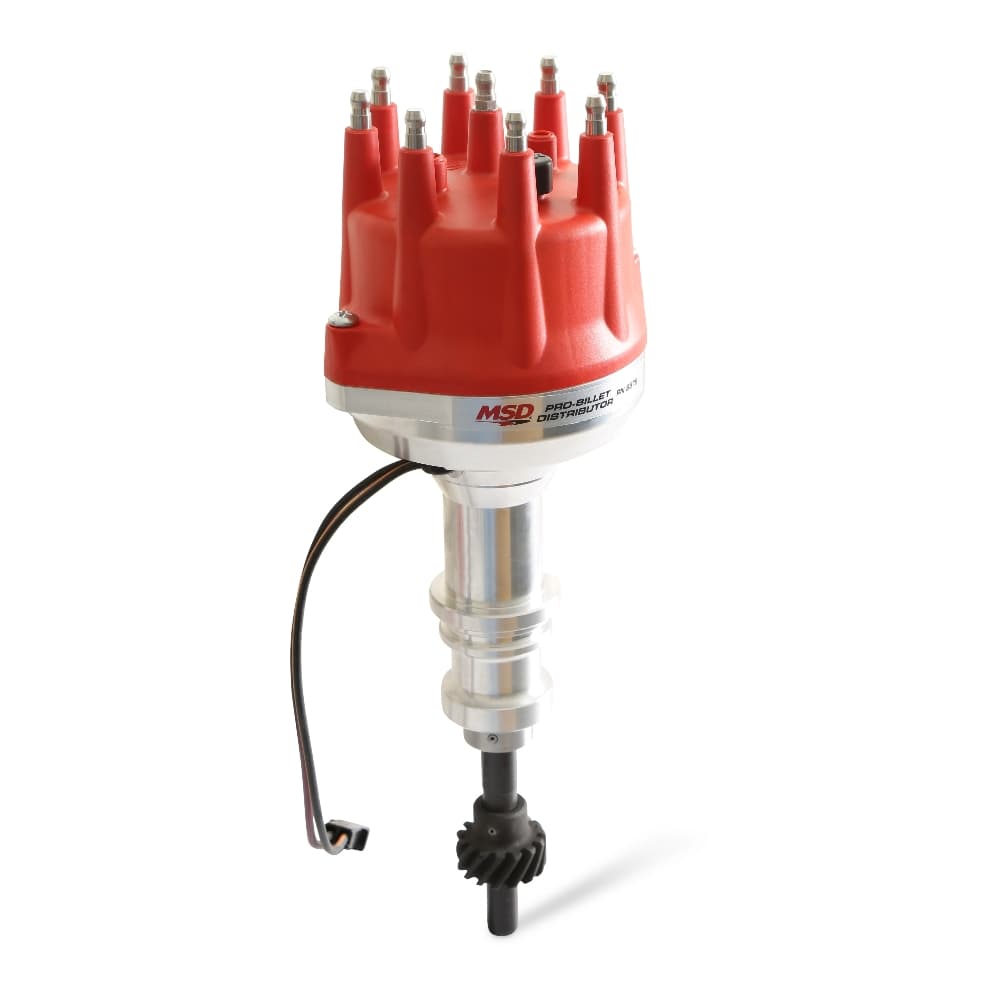

Ford 302 Small Diameter Pro-Billet Distributor
Mer information
Great for blower or manifold clearance. Fits 289/302 engines, includes iron gear. Must be used with an MSD 6, 7 or 8-series ignition.
The distributor relies on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance.
MSD engineers fit all of their high performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing are 5/8" smaller than stock Ford distributors providing extra room in front of the engine. The new MSD cap features spark plug style terminals and is firmly screwed down to the housing.

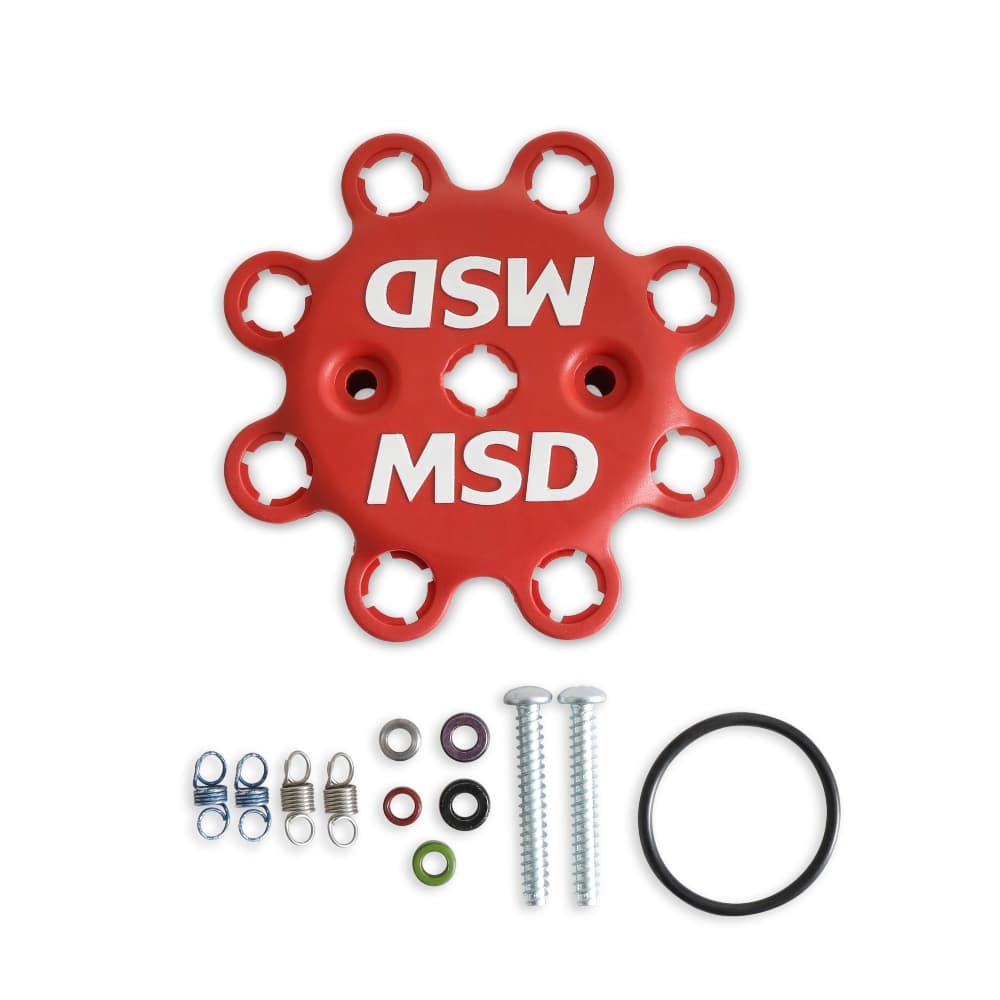

Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance.Easy-to-adjust mechanical advance with supplied springs and stop bushings

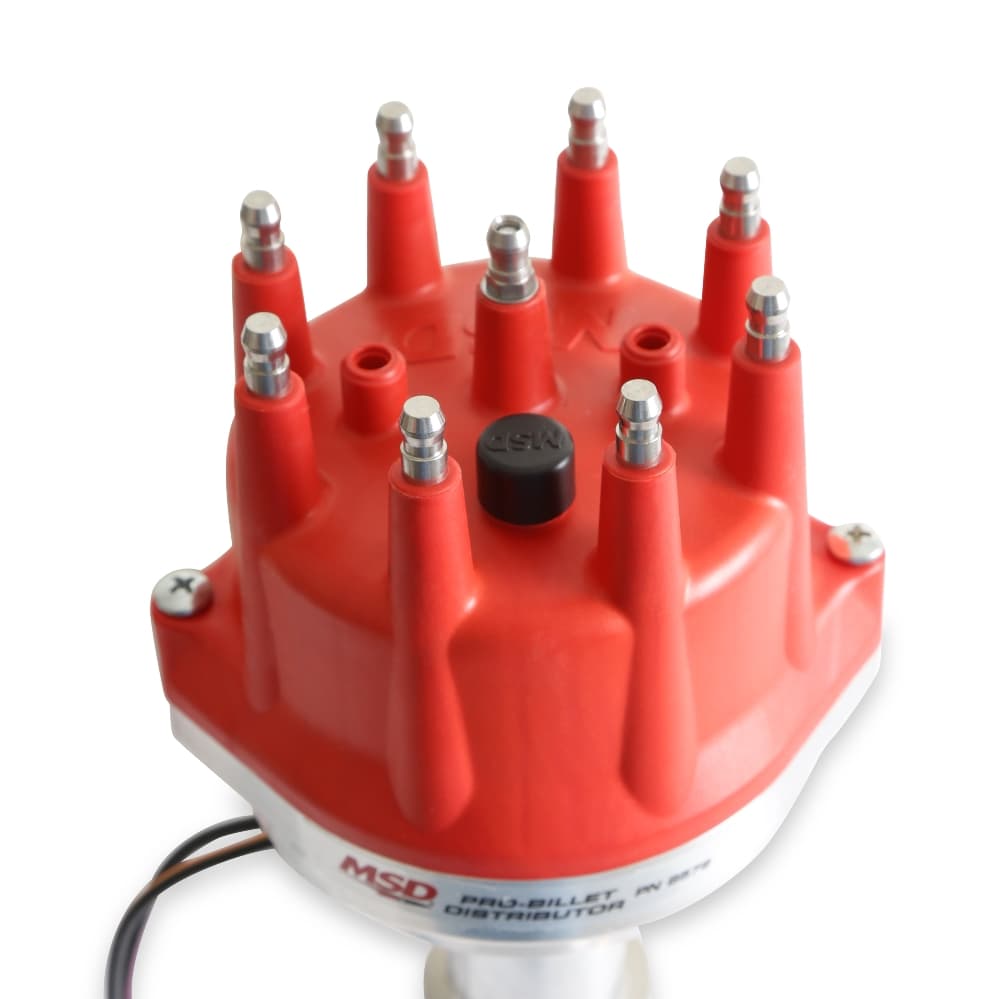

Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)

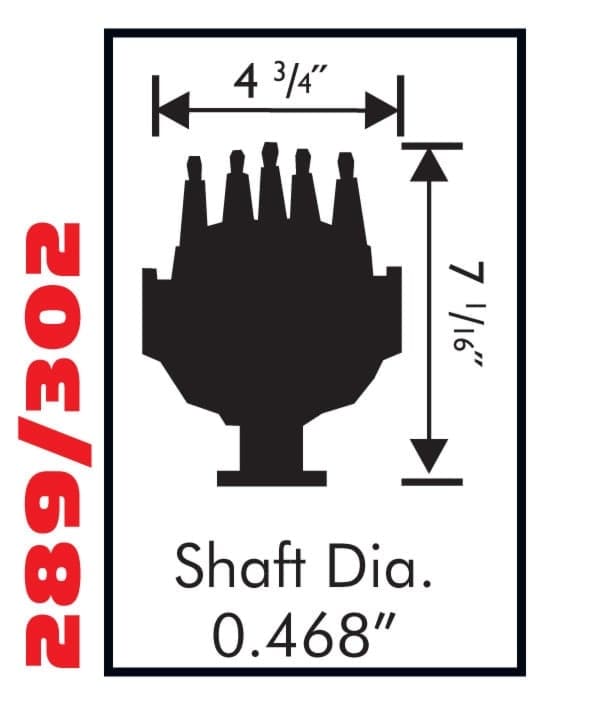

Billet housing is 5/8â? smaller in diameter than stock Ford distributors
CNC machined billet aluminum housing and billet aluminum base
Advance weight pins are staked and tig welded to the plate
No CARB Exemption Order Number

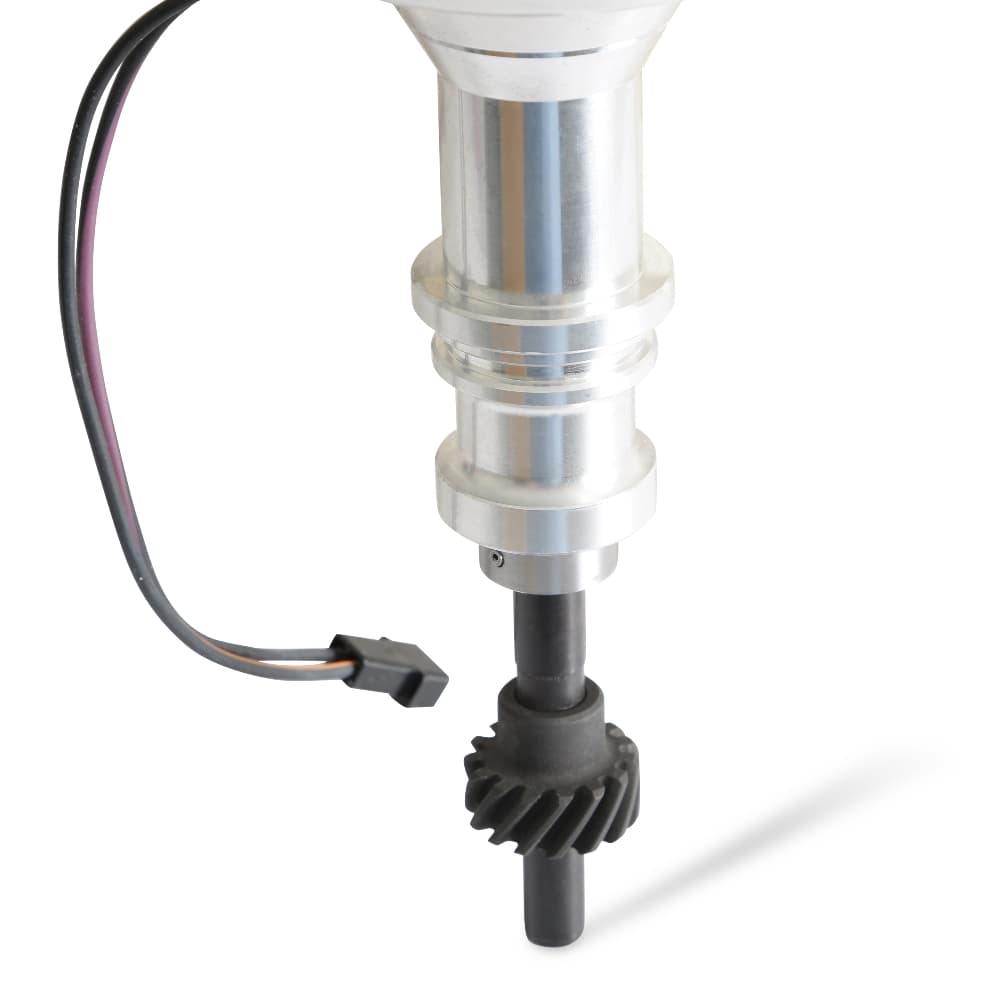

Polished steel shaft is QPQ coated and guided by a sealed ball bearing
Nylon pads ensure smooth operation of the advance weights
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Mechanical advance assembly can be locked out for crank trigger systems
Must be used with an MSD Ignition Control
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
