Edelbrock

Cylinderhuvud

The E-210 Cylinder heads for use with 1955-1986 Small-Block Chevy applications

Artikelnummer: EDL5085
Inkl. moms26 266,25 kr
Exkl. moms21 013,00 kr
Beställningsvara

Mer information

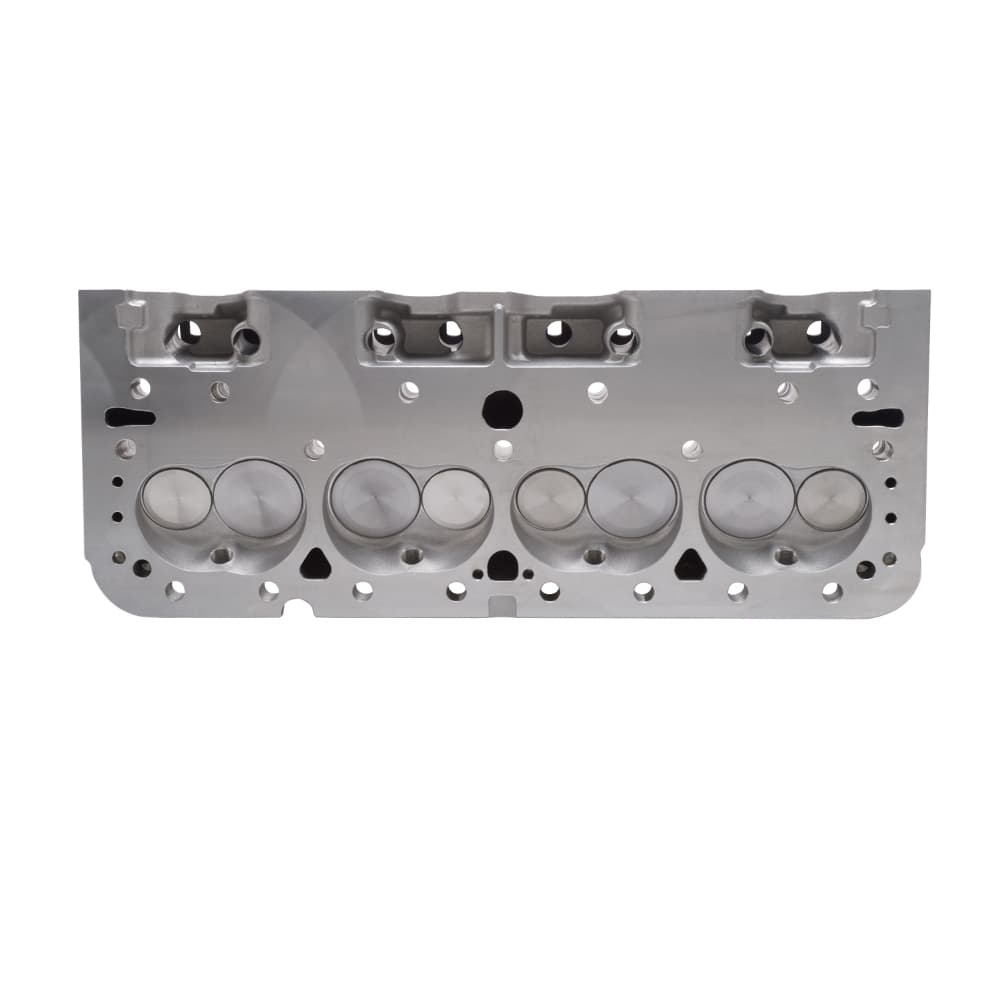

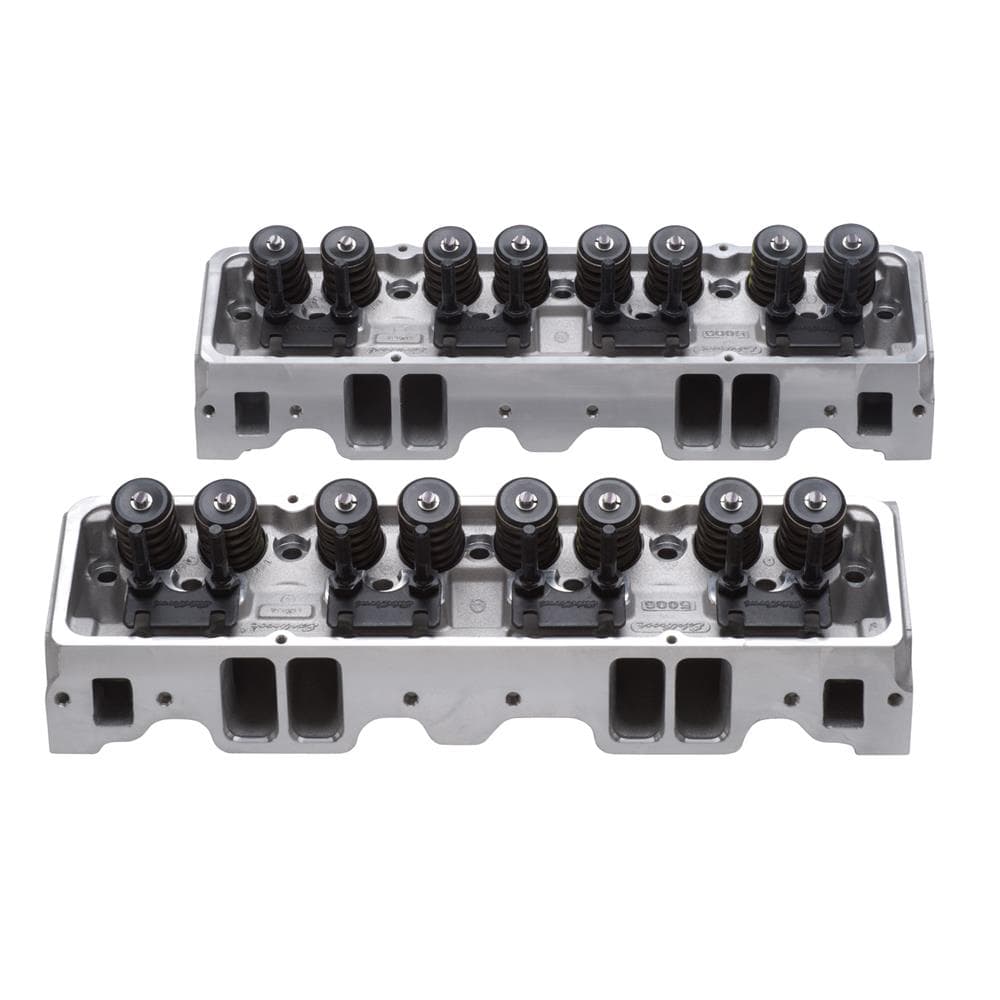

The Edelbrock #5085 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. They feature larger runners for increased airflow revised exhaust ports and larger diameter springs for higher lift camshafts.

The Edelbrock #5085 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow revised exhaust ports and larger diameter springs for higher lift camshafts making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5028 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location making them compatible with OEM headers and hardware.

Family:E-Series
Series:E-Series
EGR Port:No
Material:Aluminum
Quantity:Set of 2
CNC Ported:No
Grade Type:Performance
Horsepower:400-550 HJ
Seat Angle:Exhaust 45 deg/Intake 45 DD
Valve Angle:23 DD
Camshaft Type:Flat Tappet
Seat Material:Ductile Iron
Deck Thickness:0.5625"
Guide Material:Manganese Bronze
Valve Included:Yes
Construction Type:Complete
Push Rod Diameter:(Suggested) 0.5625 Inch
Retainer Included:Yes
Head Casting Number:N/A
Valve Stem Diameter:0.3438 Inch
Guide Plate Material:Hardened Steel
Intake Runner Volume:210 CCM
Exhaust Port Location:Standard
Exhaust Runner Volume:75 CCM
Guide Plates Included:Yes
Intake Valve Diameter:2.08"
Valve Spring Diameter:1.46 Inch
Exhaust Valve Diameter:1.60"
Valve Springs Included:Yes
Rocker Arm Stud Diameter:0.375 Inch
Combustion Chamber Volume:64 CCM
Valve Spring Maximum Lift:0.575 Inch
Rotor Center Bore Inside Diameter:Straight
