Edelbrock

Cylinderhuvud

The E-Street cylinder heads for use with 1955-1986 SBChevy engines

Artikelnummer: EDL5089
Inkl. moms19 905,00 kr
Exkl. moms15 924,00 kr
I lager

Mer information

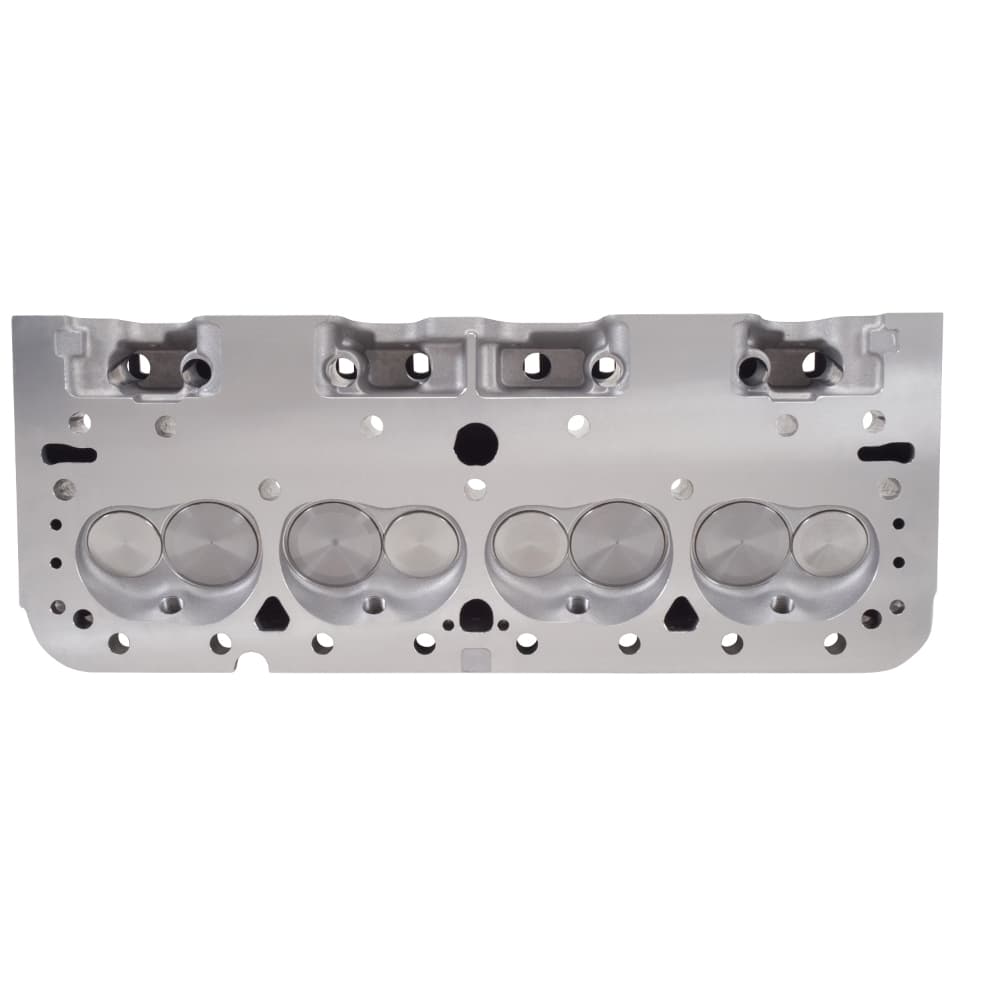

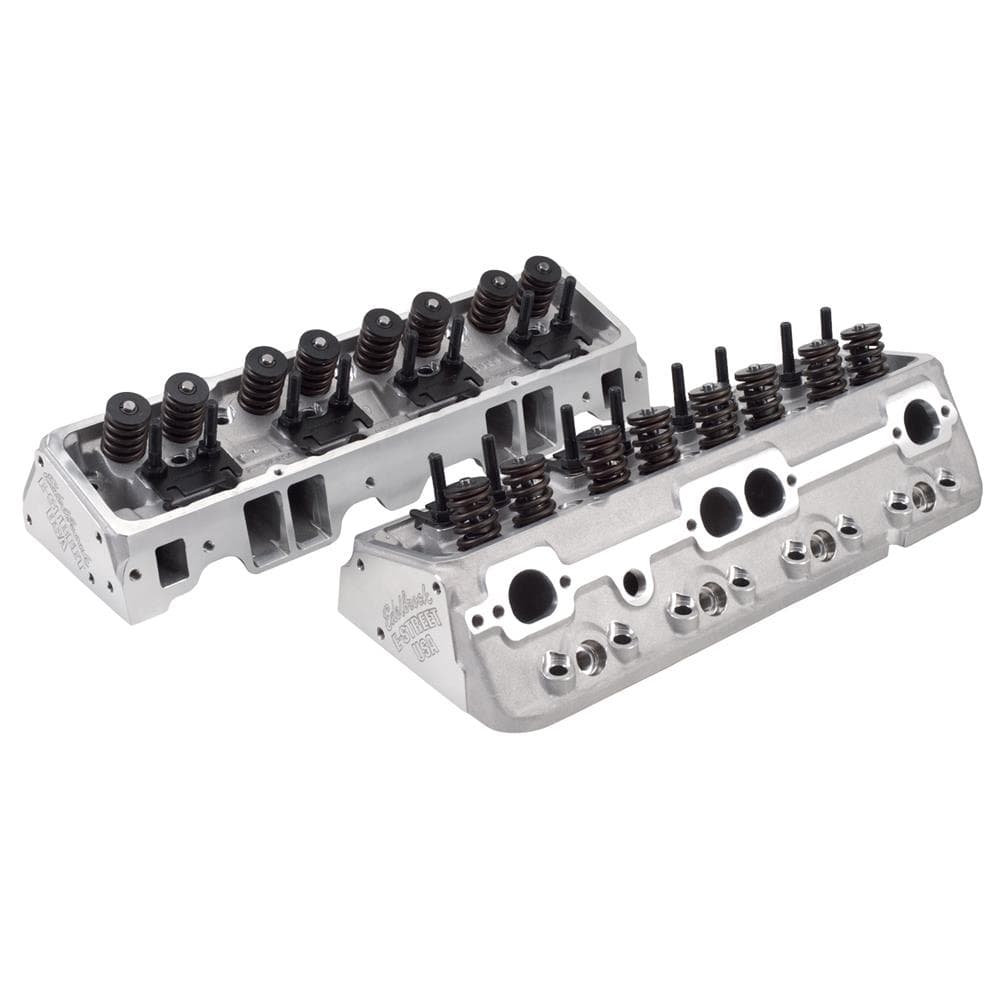

The Edelbrock #5089 E-Street cylinder heads are designed for use with 1955-1986 SBChevy engines. American made quality and affordable performance the heads feature as-cast ports and are designed for entry-level street applications.

The Edelbrock #5089 E-Street cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

Family:E-Street
Series:E-Street
EGR Port:No
Material:Aluminum
Quantity:Set of 2
CNC Ported:No
Grade Type:Performance
Horsepower:300-400 HJ
Seat Angle:Exhaust 45 deg/Intake 45 DD
Valve Angle:23 DD
Camshaft Type:Flat Tappet
Seat Material:Ductile Iron
Deck Thickness:0.5625"
Guide Material:Manganese Bronze
Valve Included:Yes
Construction Type:Complete
Push Rod Diameter:(Suggested) 0.3125 Inch
Retainer Included:Yes
Head Casting Number:N/A
Valve Stem Diameter:0.3438 Inch
Guide Plate Material:Hardened Steel
Intake Runner Volume:185 CCM
Exhaust Port Location:Standard
Exhaust Runner Volume:60 CCM
Guide Plates Included:Yes
Intake Valve Diameter:2.02"
Valve Spring Diameter:1.46 Inch
Exhaust Valve Diameter:1.60"
Valve Springs Included:Yes
Rocker Arm Stud Diameter:0.375 Inch
Combustion Chamber Volume:64 CCM
Valve Spring Maximum Lift:0.550 Inch
Rotor Center Bore Inside Diameter:Straight
