Edelbrock

Topplock

E-Tec Cylinder Heads are replacements for 302 327 350 & 400 SB Chevy engines with Vortec-style manifolds

Artikelnummer: EDL60985
Inkl. moms15 625,00 kr
Exkl. moms12 500,00 kr
Beställningsvara
Topplock-1
Topplock-2
Topplock-3

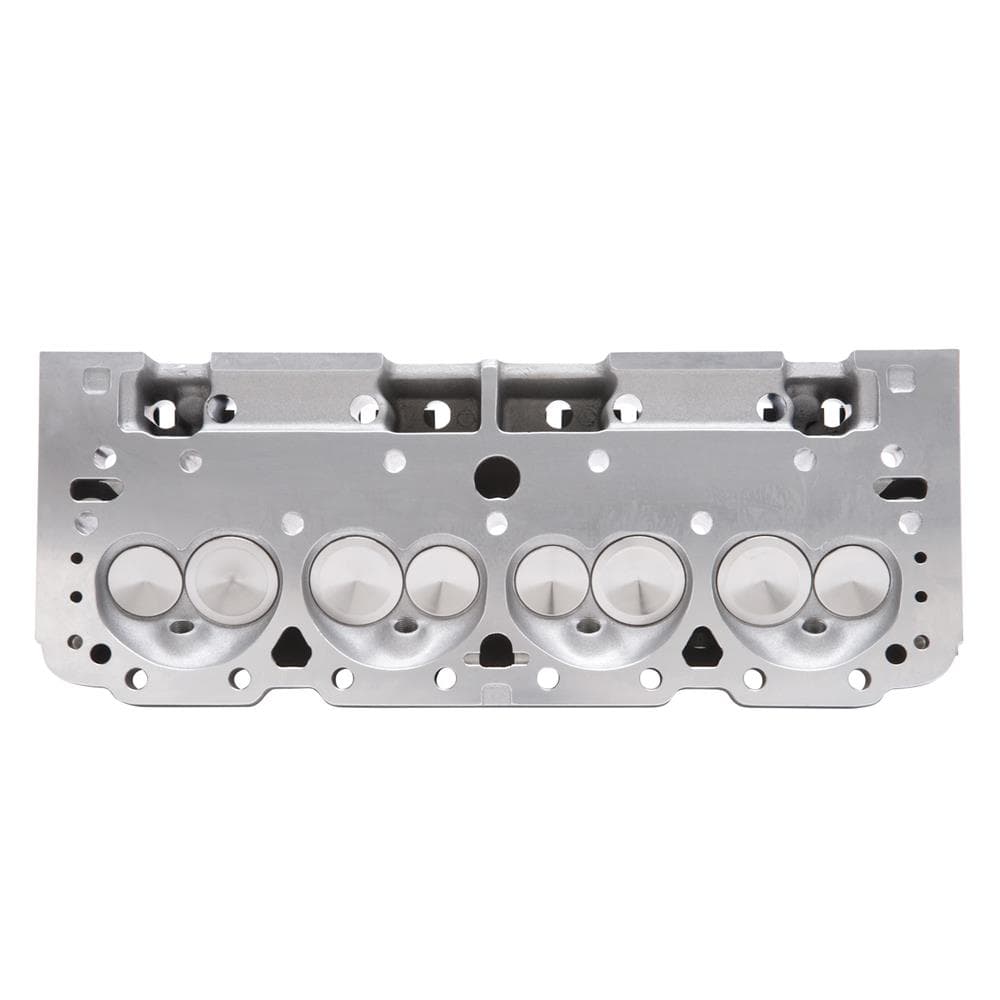

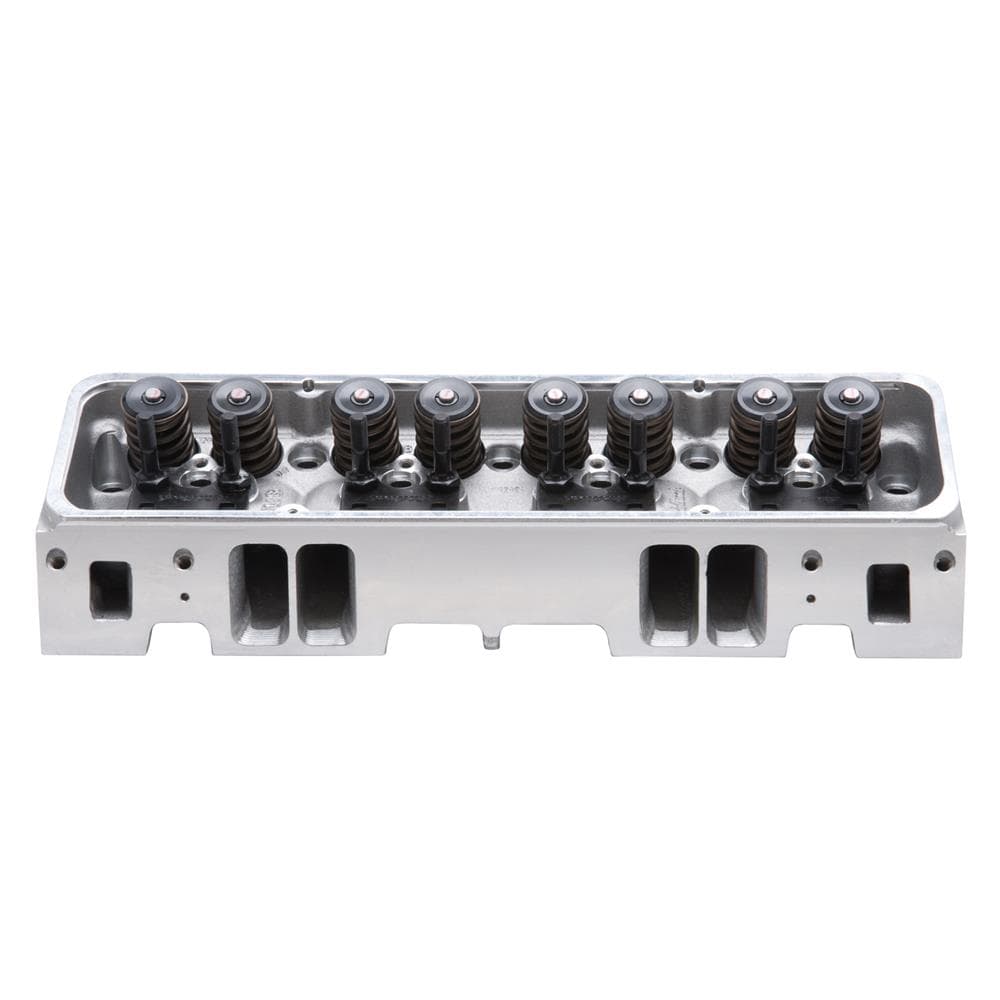

The Edelbrock #60985 E-Tec Cylinder Heads are replacements for 302 327 350 & 400 SB Chevy engines with Vortec-style manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance.

The Edelbrock #60985 E-Tec cylinder head is replacements for 302 327 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder promoting a more efficient combustion resulting in more power. This head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec cylinder head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds.

Family: E-TecSeries: E-TecEGR Port: NoMaterial: AluminumQuantity: Sold IndividuallyCNC Ported: NoGrade Type: PerformanceHorsepower: 350-500 HJSeat Angle: Exhaust 45 deg/Intake 45 DDValve Angle: 23 DDCamshaft Type: Hydraulic RollerSeat Material: Ductile IronDeck Thickness: 0.625"Guide Material: Manganese BronzeValve Included: YesConstruction Type: CompletePush Rod Diameter: (Suggested) 0.625 InchRetainer Included: YesHead Casting Number: N/AValve Stem Diameter: 0.3438 InchGuide Plate Material: Hardened SteelIntake Runner Volume: 200 CCMExhaust Port Location: StandardExhaust Runner Volume: 80 CCMGuide Plates Included: YesIntake Valve Diameter: 2.02"Valve Spring Diameter: 1.46 InchExhaust Valve Diameter: 1.60"Valve Springs Included: YesRocker Arm Stud Diameter: 0.375 InchCombustion Chamber Volume: 64 CCMValve Spring Maximum Lift: 0.575 InchRotor Center Bore Inside Diameter: Straight
