Edelbrock

Topplock

Performer RPM Cylinder Heads for any 1967-91 AMX Javelin or Jeep with a 343 360 390 or 401 AMC V8 engine

Artikelnummer: EDL60119
Inkl. moms21 825,00 kr
Exkl. moms17 460,00 kr
Beställningsvara
Topplock-1
Topplock-2
Topplock-3
Topplock-4

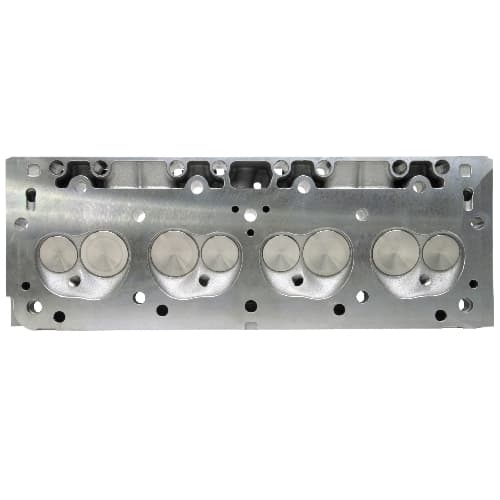

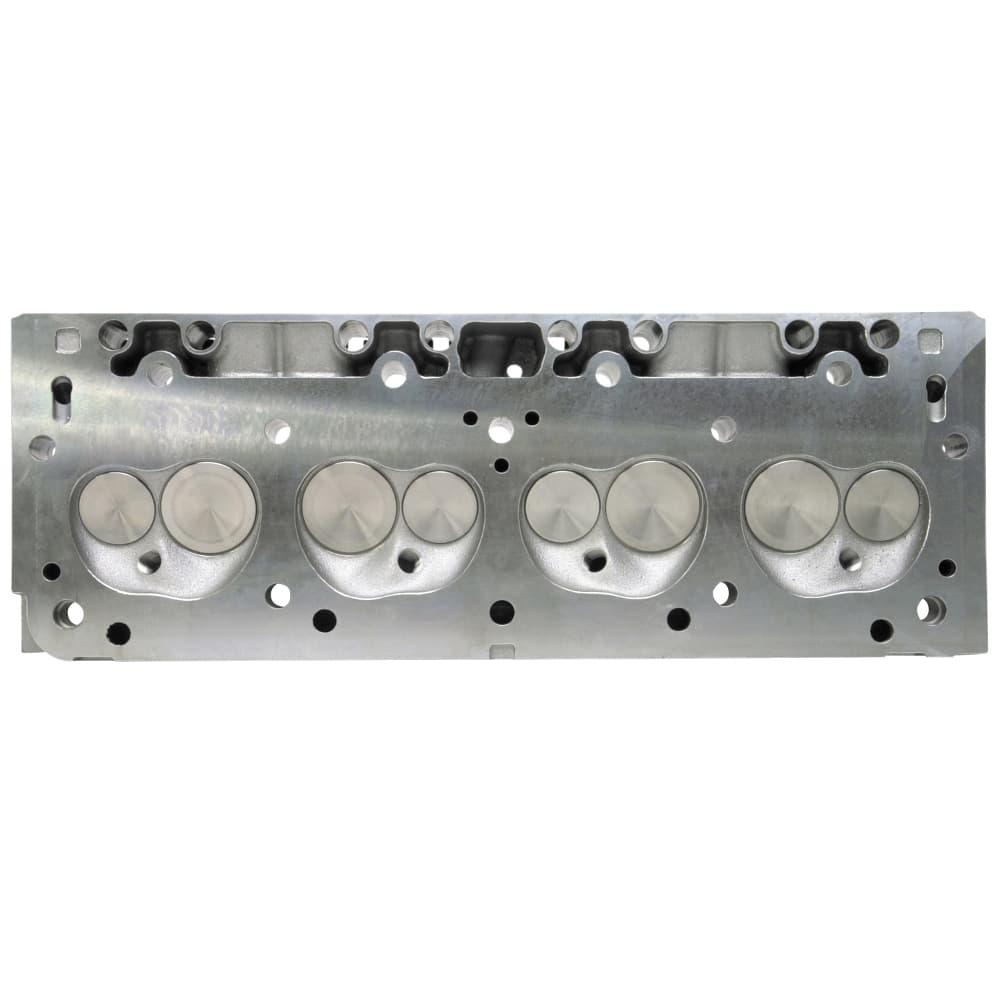

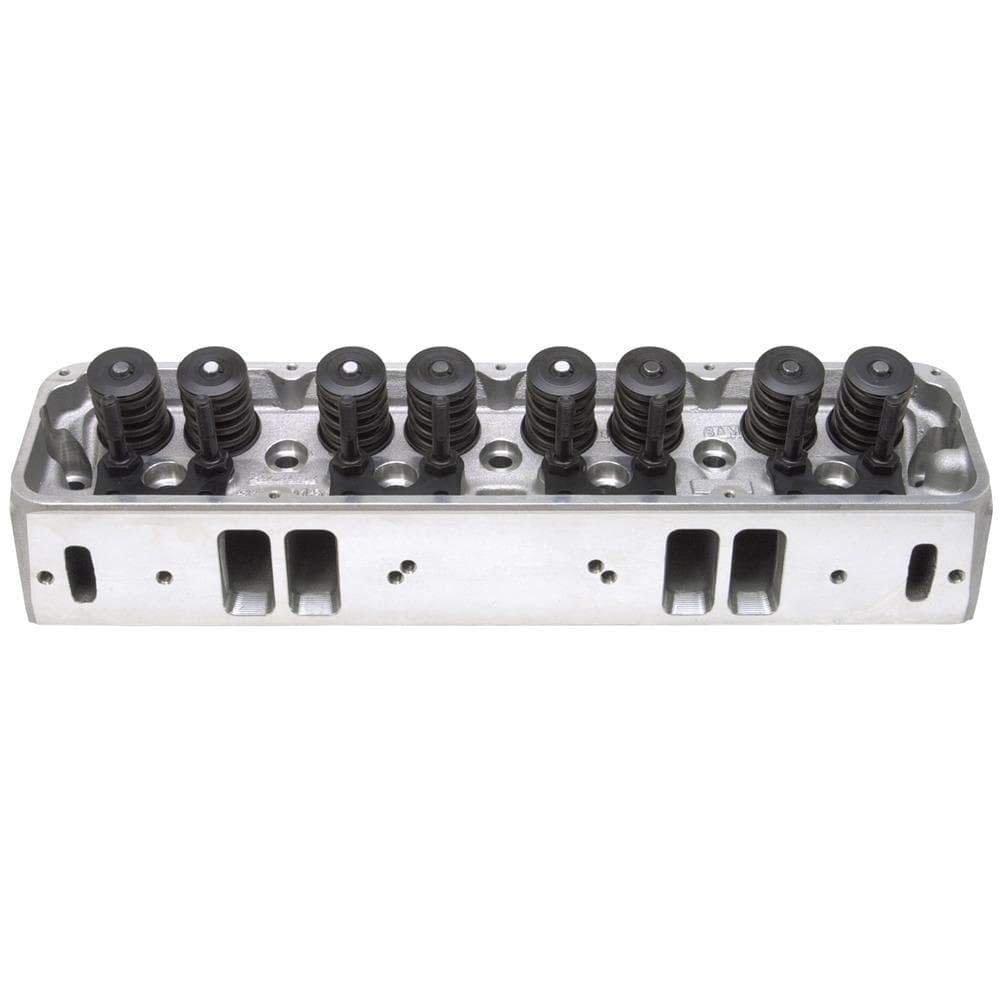

The Edelbrock #60119 Performer RPM Cylinder Heads are designed as a bolt-on performance upgrade for any 1967-91 AMX Javelin or Jeep with a 343 360 390 or 401 AMC V8 engine.

The Edelbrock #60119 Performer RPM cylinder head is designed as a bolt-on performance upgrade for any 1967-91 AMX Javelin or Jeep with a 343 360 390 or 401 AMC V8 engine. They include adjustable rocker studs and guide plates set-up for use with small-block Ford style adjustable 1.6:1 ratio rockers. The intake flange is dual-drilled to accommodate early and late model intake bolt patterns covering 1967-91. A Complete head includes larger than- stock valve springs to handle most high-lift cams. They feature stock location ports for compatibility with standard manifolds and headers. A direct bolt-on for 1970 and later engines with 1/2" head bolts This head includes step-dowel pins for pre-1970 engines. Their dual-quench combustion chambers produce approximately 9.5:1 compression in 401 V8 engines. The 45deg intake seat angle offers improved mid- to high-lift flow over the stock 30deg angle.

Family: Performer RPMSeries: Performer RPMEGR Port: NoMaterial: AluminumQuantity: Sold IndividuallyCNC Ported: NoGrade Type: PerformanceHorsepower: 300-450 HJSeat Angle: Exhaust 45 deg/Intake 45 DDValve Angle: 18 DDCamshaft Type: Flat TappetSeat Material: Ductile IronDeck Thickness: 0.625"Guide Material: Manganese BronzeValve Included: YesConstruction Type: CompletePush Rod Diameter: (Suggested) 0.3125 InchRetainer Included: YesHead Casting Number: N/AValve Stem Diameter: 0.34375 InchGuide Plate Material: Hardened SteelIntake Runner Volume: 185 CCMExhaust Port Location: StandardExhaust Runner Volume: 70 CCMGuide Plates Included: YesIntake Valve Diameter: 2.02"Valve Spring Diameter: 1.55 InchExhaust Valve Diameter: 1.60"Valve Springs Included: YesRocker Arm Stud Diameter: 0.375 InchCombustion Chamber Volume: 54 CCMValve Spring Maximum Lift: 0.580 Inch
